Description

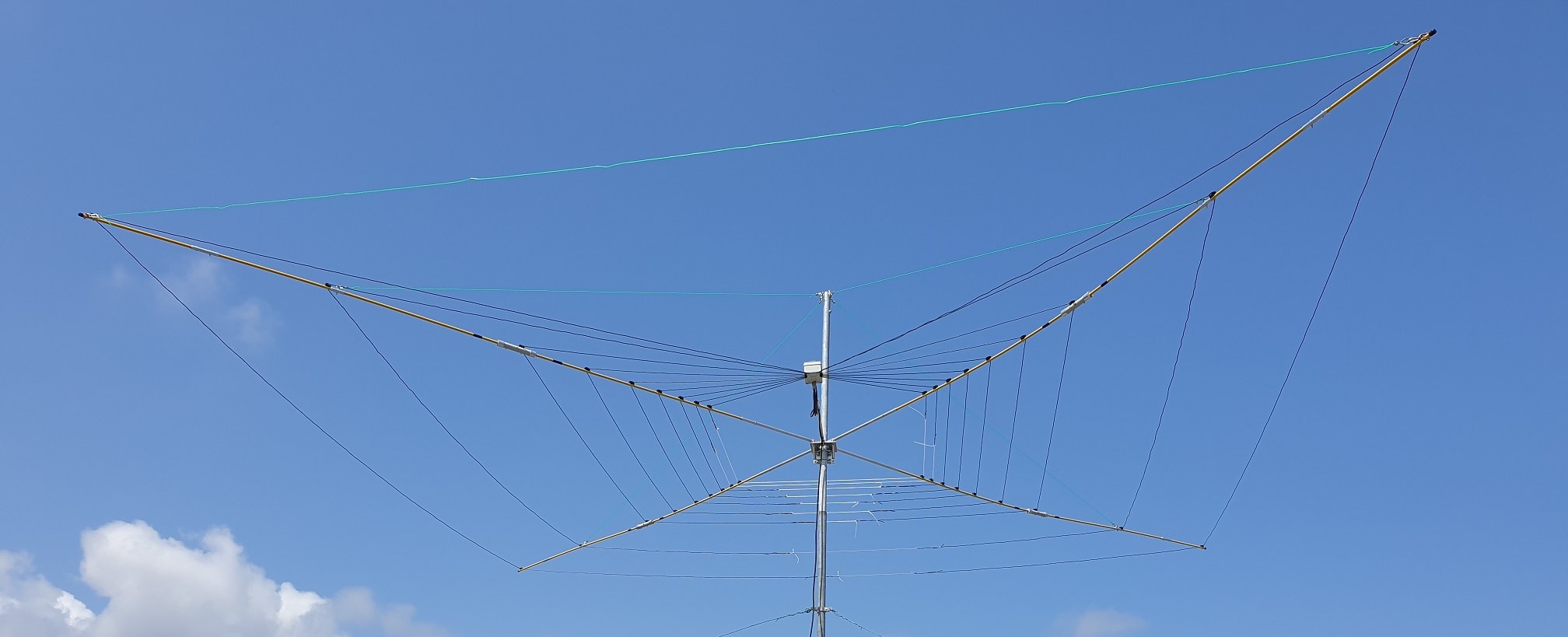

Multiband cobweb antenna works on 8 HF bands and up to 800/1000w.
Bands are 7,10,14,18,21,24,28,50 MHz
This antenna has sides of the square 5,2 x 5,2 m, and is very useful where space is limited.
It’s design is strong and robust, and is resistant to strong winds.

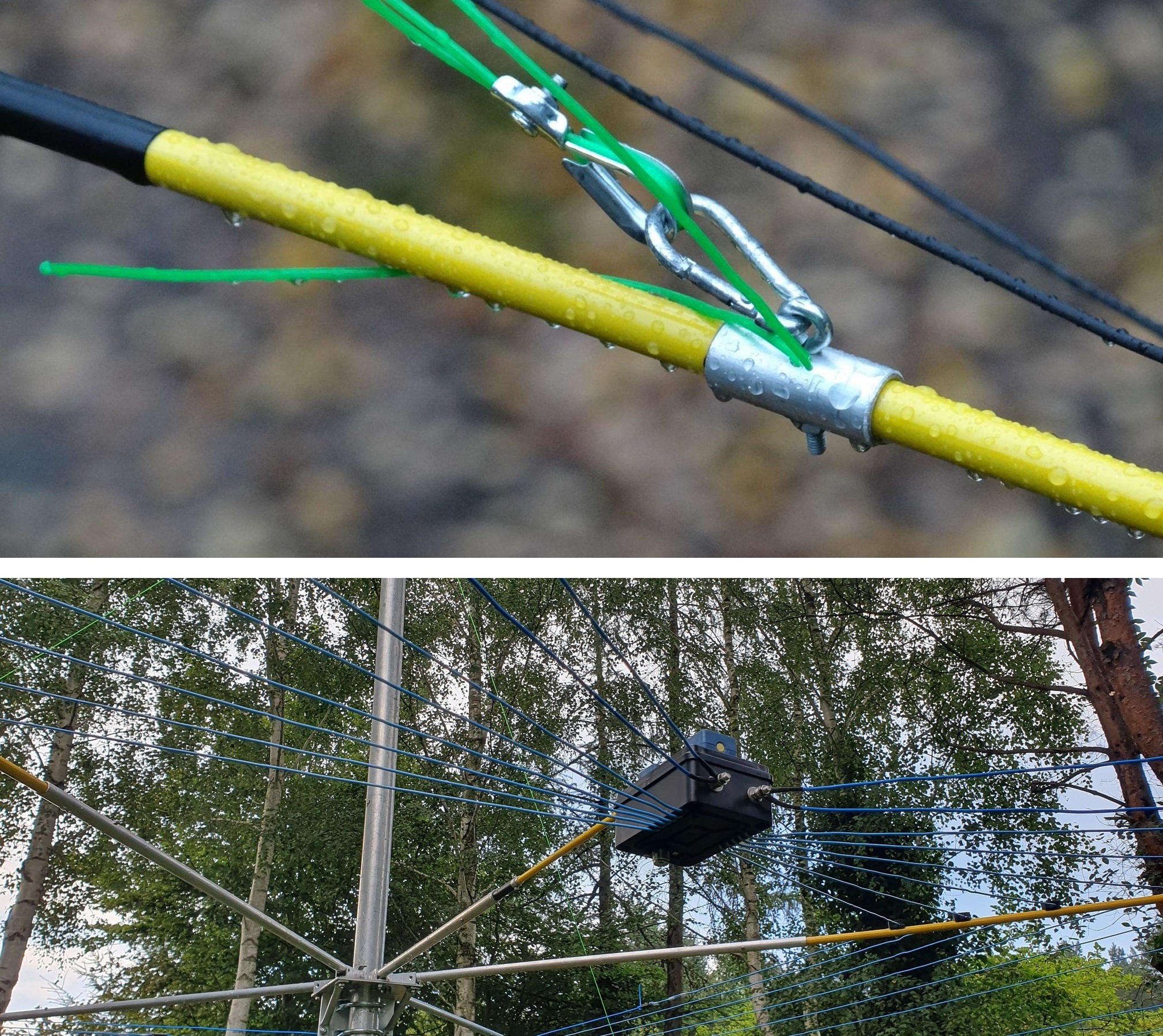

The antenna is contructed from glass fibre rods, aluminum, stainless steel and galvanized steel and has a sealed connector box resistant to rain and UV rays to keep the balun and connections from the elements.
The antenna works well on DX and as a QRP station.

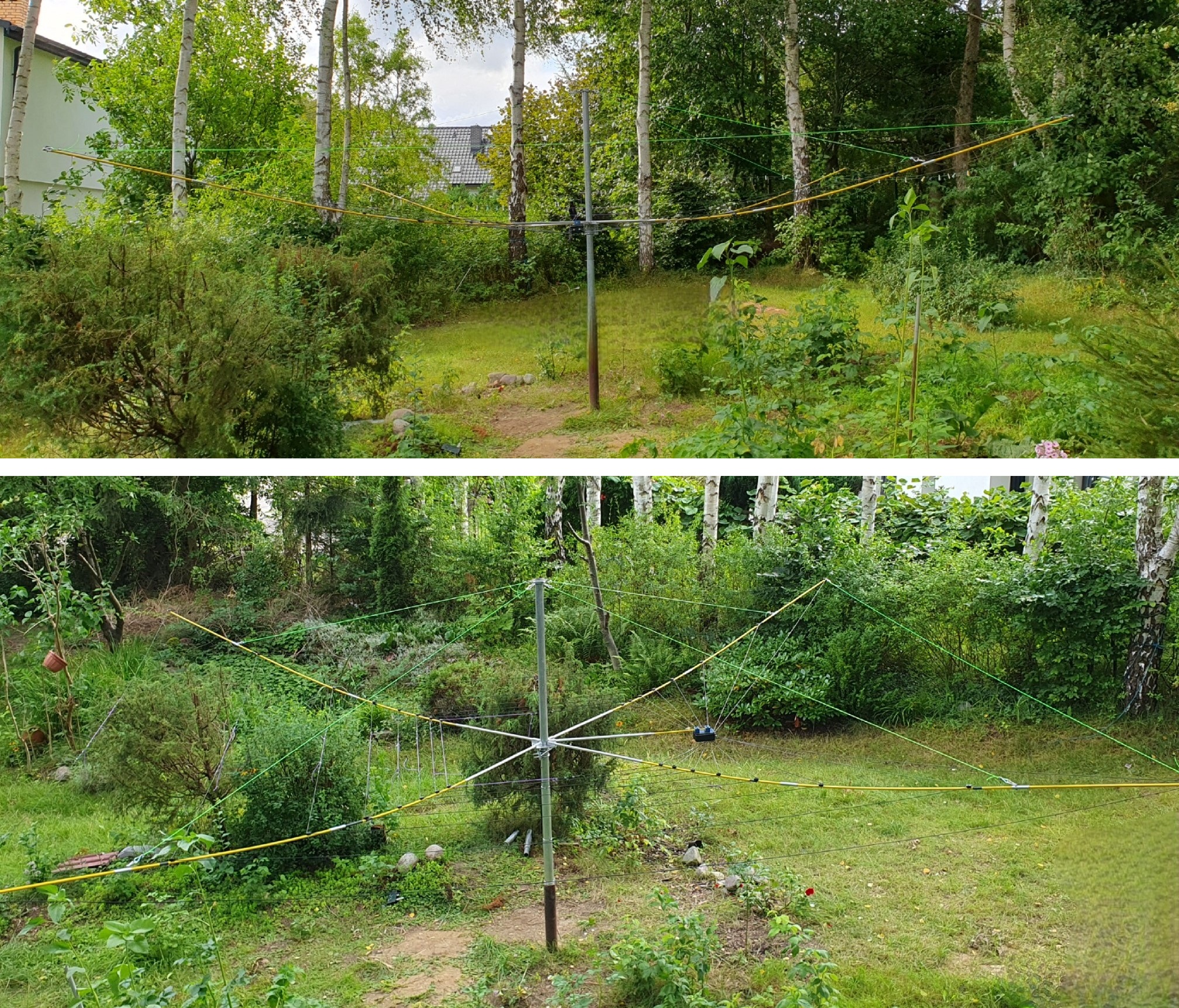

It is pre-tuned to different bands at a height of 5 metres above the ground. Raising the antenna above 5m will generally see SWR decrease.
This antenna is omni-directionally so you do not need a rotator.
It is made up of folded half-wave dipoles for 40,30,20,17,15,12,10,6 meters bands.
Polarisation is horizontal and is naturally resistant to some electrical interference and static.
Large system efficiency to 95%.
Technical details
Impedance — 50 Ohm
Socket — UC1 / SO239
Horizontally polarised
Radiation Omni-Directional
Max power supplied 800/1000 Watt PEP
Antenna max gain 5 dBi
Minimum SWR 1.1: 1

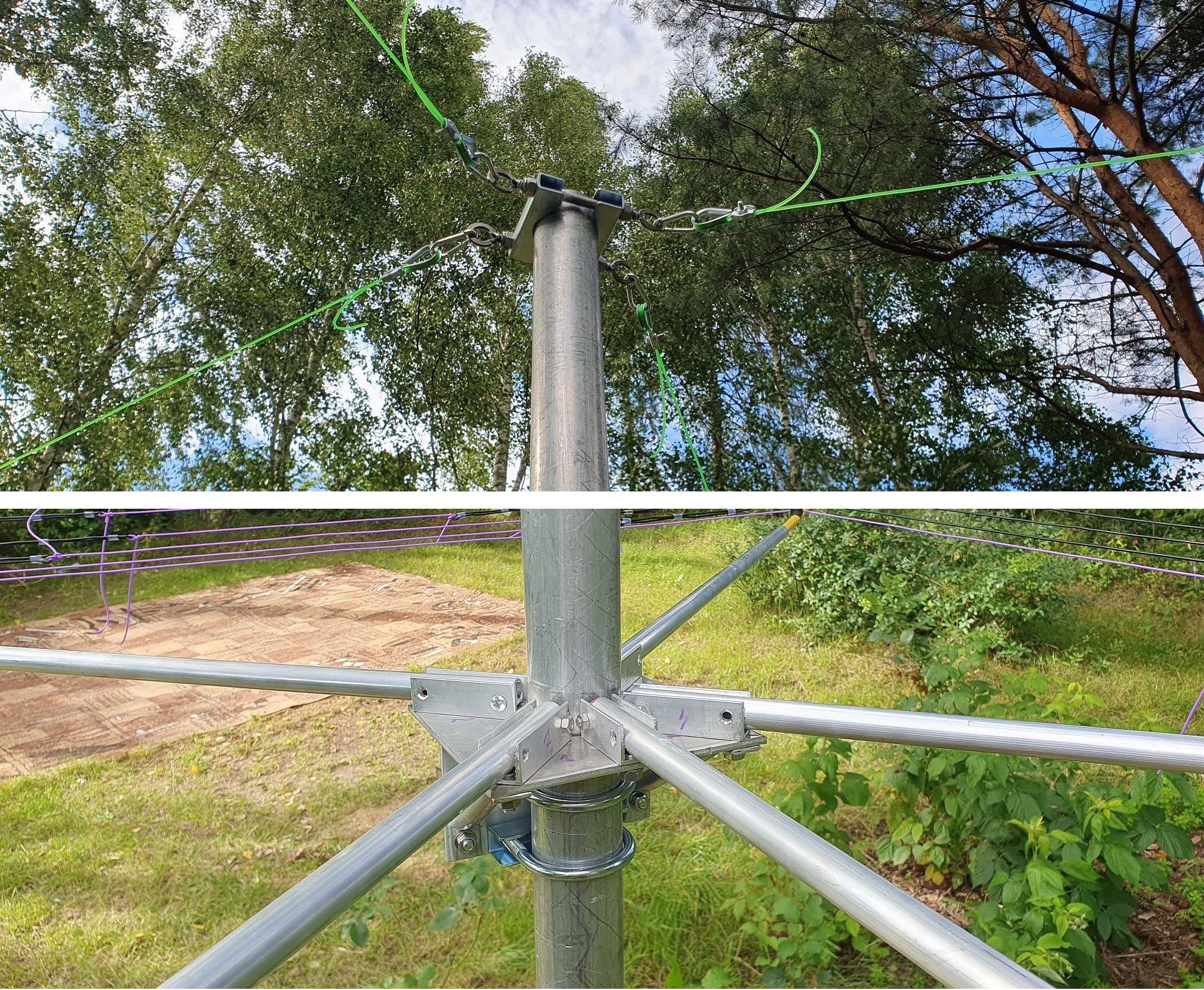

Can accommodate any mast up to 52mm in diameter.
Weight 8 kg.
Square sides of 5,2m and turning radius 3,6m
Additional information
| Weight | 8 kg |
|---|---|
| Dimensions | 140 × 17 × 17 cm |
