Delta Loop 4el. 11M
1950,00 zł excluding VAT & Shipping
Available on back-order
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

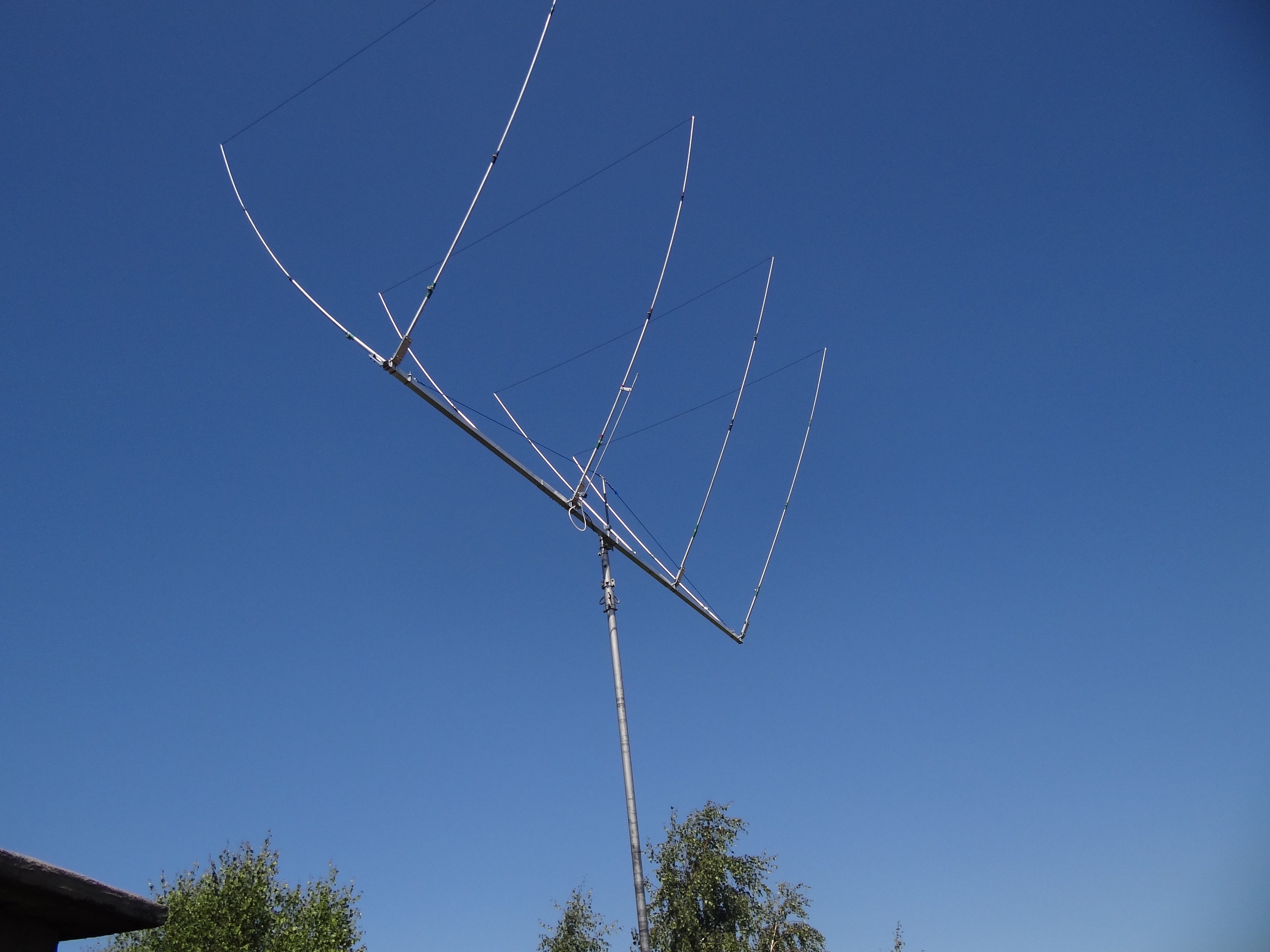

A 4-element Delta Loop antenna designed and tuned for the 11m 27 or optional 10m 28 MHz band.
The antenna is made to order, which means it will take a few days to manufacture once you’ve placed your order. In some situations, it might take 5–7 days, but it’s best to ask me about it 😉
It is a robust directional antenna ideal for local and distant DX communications. The beam has been narrowed and performance improved over the 3-element version. A large antenna for discerning DXers.
The antenna does not require a tall mast.
The design uses high quality materials for durability and electrical performance.
You can also order the antenna for the 10m band.

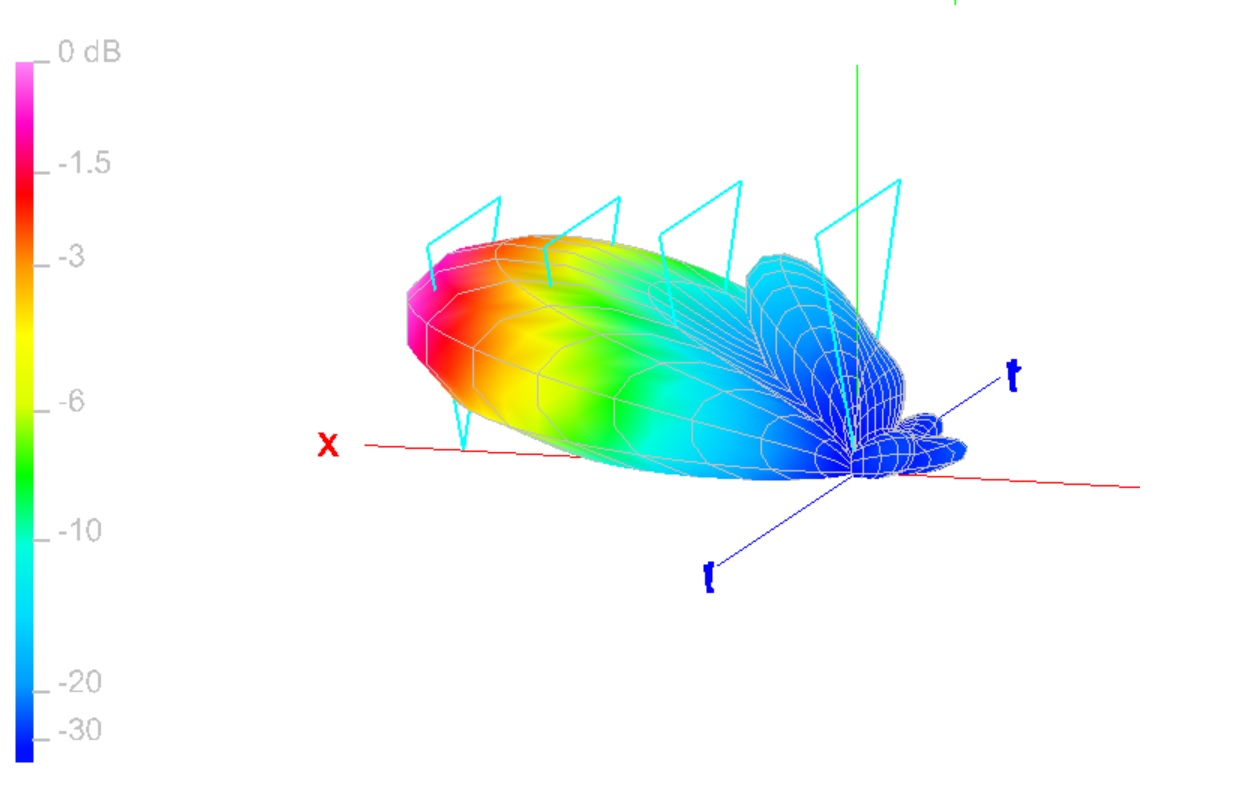

Gain – 14,8 dBi
Front/Back Ratio – 26 dB
Power rating – 2kW
Matching method – gamma match
Impedance – 50 Ohm
Weight – 18 kg
Boom length – 5.2m
Additional information
| Weight | 20 kg |
|---|---|
| Dimensions | 150 × 17 × 17 cm |
STEVE 163TC380 –
This Antenna works really well, it is durable as well which is good for my location, it works well for back-scatter which is handy, I will be buying another antenna from AWK as quality & performance are good, and assembly was straight forward.
