9el. AWK Yagi antenna

600,00  ex. VAT & Shipping

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
GUARANTEED SAFE CHECKOUT
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1 Category:

Description

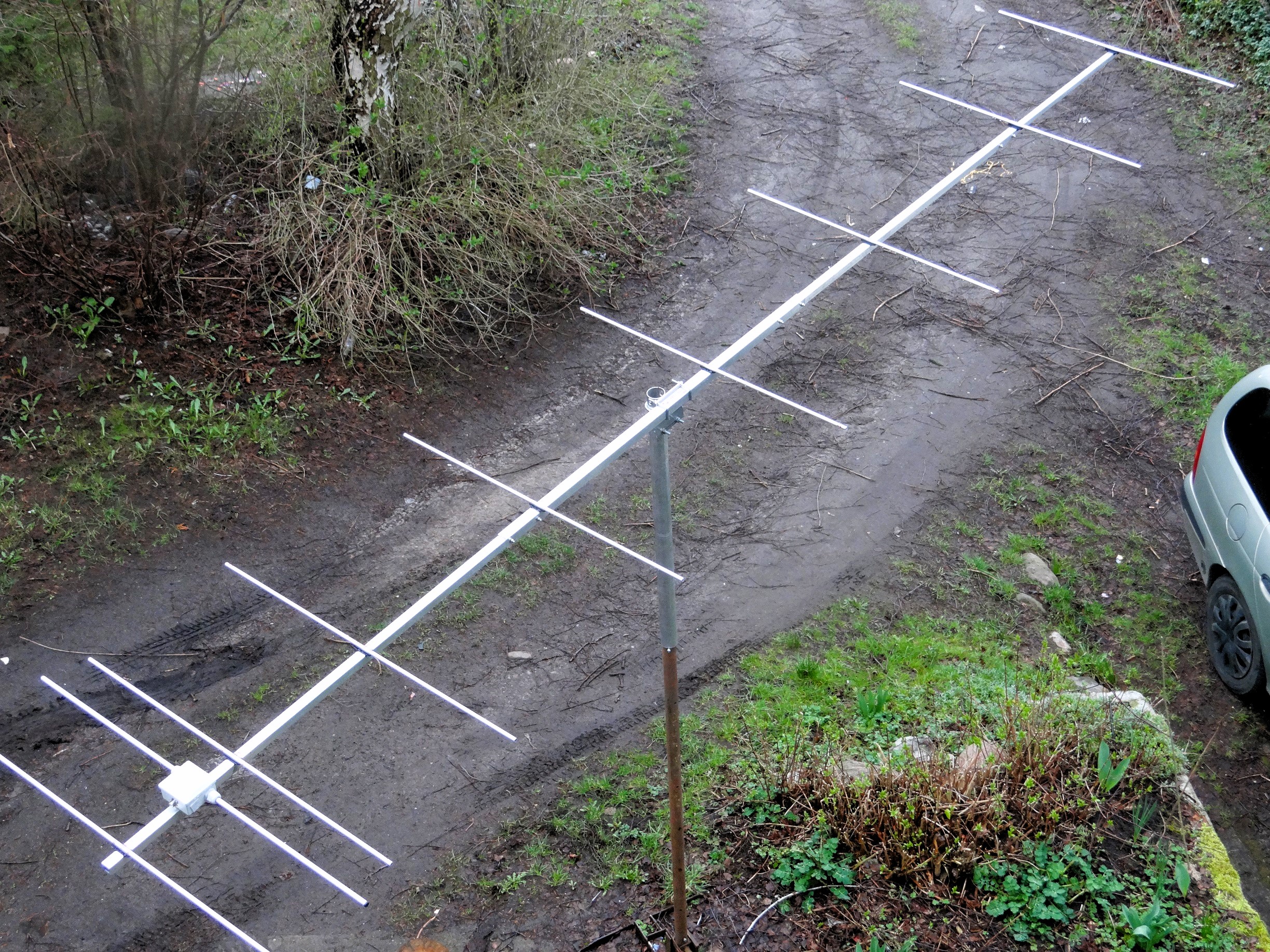

Yagi directional antenna for the 2m band. Once assembled it is tuned and ready for use.
Ideal for FM and DX communications on SSB

Technical specifications

Frequency range – 144-146 MHz
Number of elements – 9
Gain – 14.2 dBi
F/B ratio – 23.0 dB
Maximum power input – 500 W
Maximum SWR – 1.5:1
Antenna connector – SO239
Balun (Teflon COAX) – 50/50Ω
Total length – 440 cm

Boom section 30x30x2 / 25x25x2 /20x20x1.5mm
Element diameter 10 mm (vibrator 12 mm)
Material used aluminium / stainless steel
Pole attachment max. 55 mm diameter

Additional information

Weight 5 kg
Dimensions 150 × 15 × 15 cm
