24el. Dual Band Yagi 2/70

Description

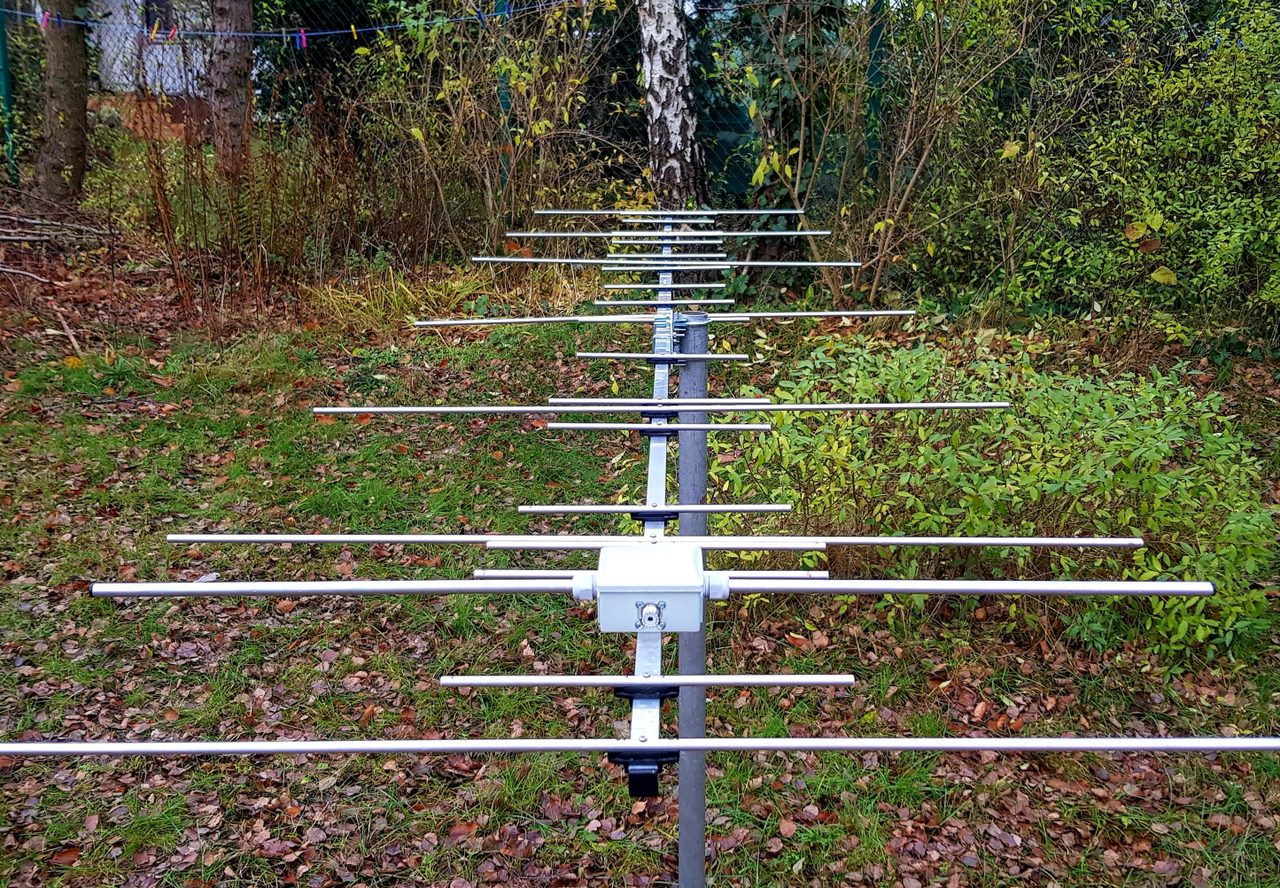

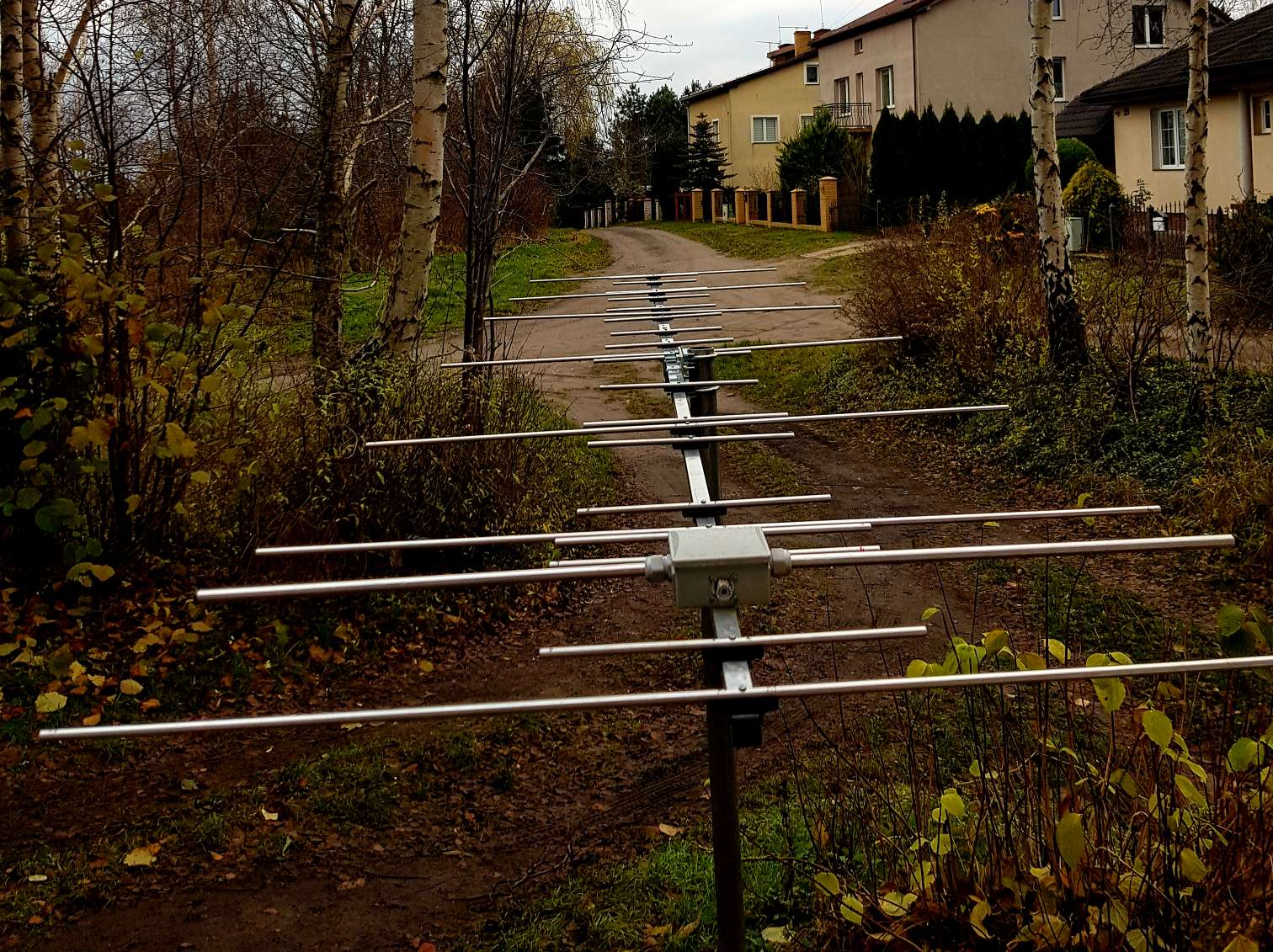

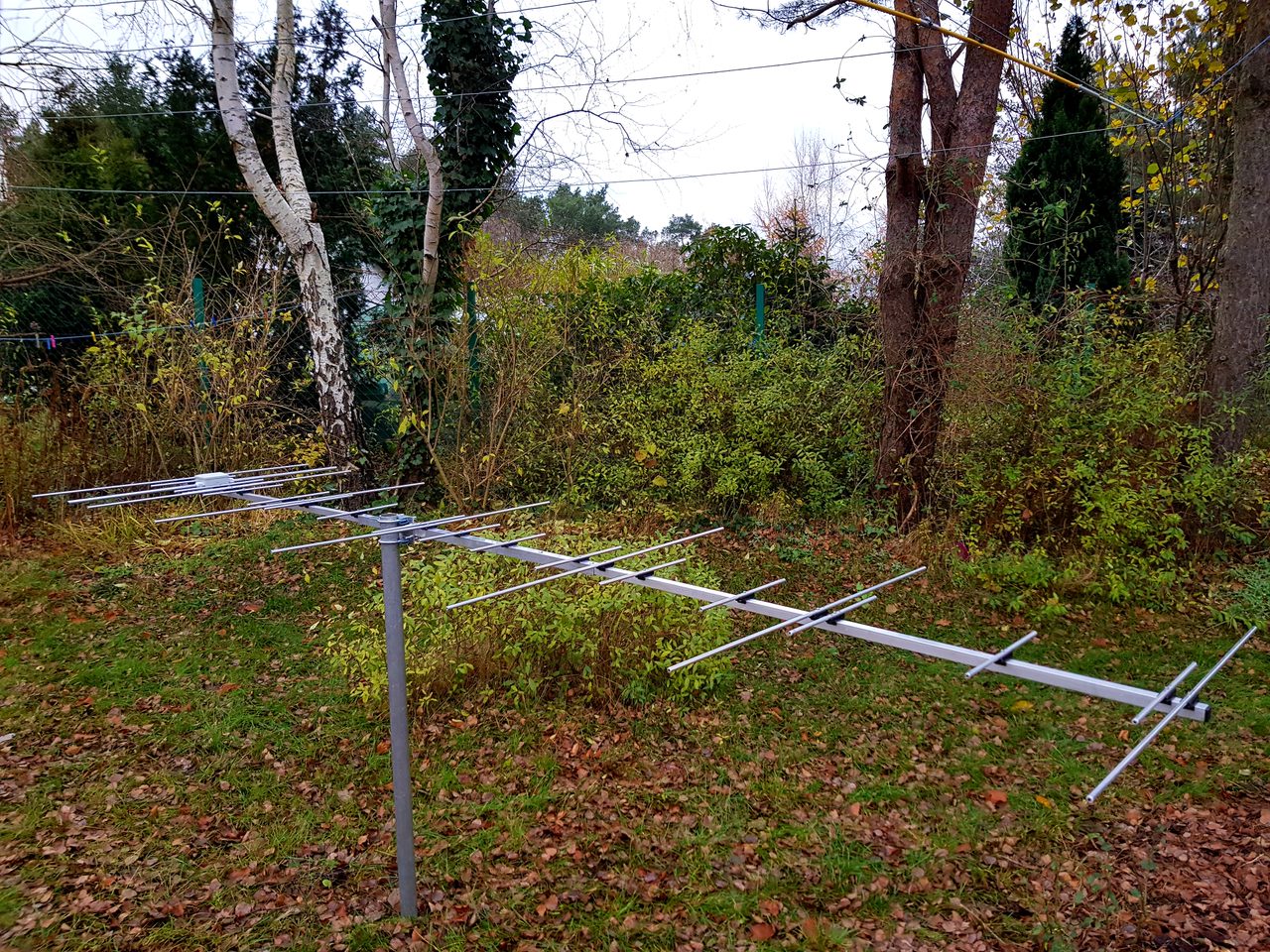

24el. dualband Yagi

Lightweight single slot antenna for both bands. Ideal for both local and DX communications, split stepped boom, rugged construction with high quality components.

Specyfications 2m band

Frequency Range: 144 – 146 MHz
Forward Gain: 13.3 dBi
Front/Back Ratio: 24 dB
Polarization: Horizontal
Impedance: 50 Ohms
SWR : < 1.5
Maximum Power Input: 400 W
Matching Method: RG316 Teflon choke

Specifications 70 cm band

Frequency Range: 430 – 440 MHz
Forward Gain: 15.5 dBi
Front/Back Ratio: 22 dB
Polarization: Horizontal
Impedance: 50 Ohms
SWR : < 1.5
Maximum Power Input: 200 W
Matching Method: RG316 Teflon choke

Connector: “N” type
Boom Length: 3,5 m
